PB 16

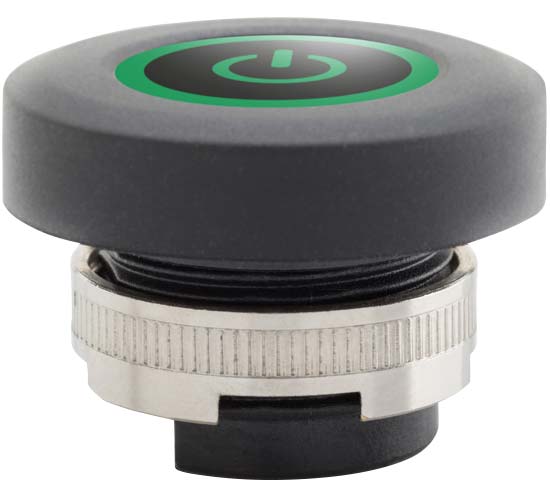

PB pushbutton series

The PB-16 family includes all the pushbuttons that have a diameter of 16 mm. The name of the different pushbuttons are composed by 5 fields that have the following meanings. All the combinations of the different fields (and their technical features) are not possible.
Not all combinations of the different fields (and their technical features) are possible.

MTEC-COMPONENTS

AVAILABLE PUSHBUTTONS

The available pushbuttons are:

> PB-16 13-ANS
> PB-16 13-BNS
FIELDVALUEDESCRIPTION
11one step
23three PIN output connector
3A12 N operating force (nominal)
3B10 N operating force (nominal)
3C9 N operating force (nominal)
4Nblack button color
5S50 ShA overmolded
MECHANICAL
Travel (nominal)0,6 mm
Operation force (nominal)field 3 of pushbutton code indicates this value
Tightening torque (mounting nut)1,1 Nm
Break torque> 2 Nm

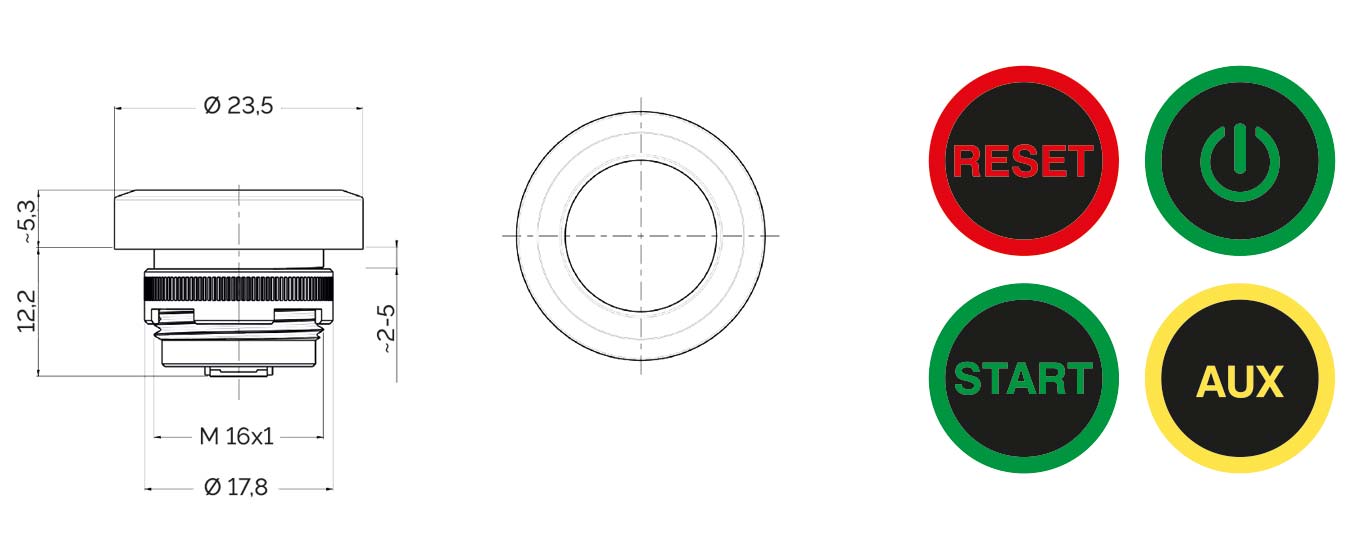

DIMENSIONS (mm)

Note:
example of available labels
for the top of the pushbutton.

Technical data

MECHANICAL
Mechanical life (maximum)1 million cycles
Panel thickness range2÷5 mm
Body materialplastic (PBT)
Button materialplastic (PP+TPV)
Mounting positionany
ELECTRICAL
Electrical life (maximum)1 million cycles
Voltage range3,3÷12 Vdc
Current rating (typical)0,33÷5 mA
Contact materialstainless steel on hard gold plated
Terminals or connector typeHirose DF13 (gold plated)
Bouncing time< 3 ms
ENVIRONMENTAL
Operating temperature range-25 °C ÷ +70 °C
according to EN 60068-2-1, -2-2
+25 °C ÷ +55 °C with 95% relative humidity
according to EN 60068-2-30
Storage temperature range-40 °C ÷ +85 °C
according to EN 60068-2-1, -2-2
Sinusoidal vibration2-4 g 8-500 Hz according to EN 60068-2-6
Shock25 g 6 ms according to EN 60068-2-27
Broad-band vibration1-3 m2/s3 10-500 Hz according to EN 60068-2-64
Protection degreeIP66 according to IEC 60529 NEMA 4 according to STANDARD 250 of National Electrical Manufacturers Association
