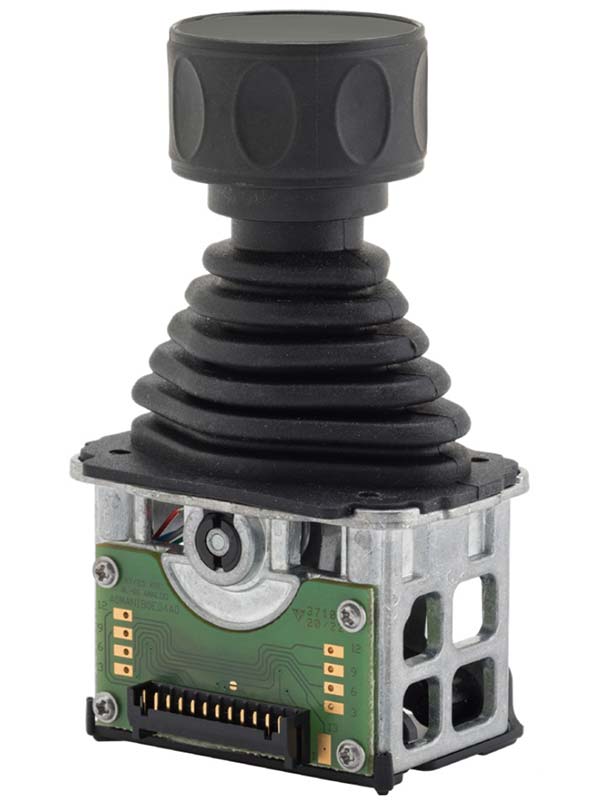

Joysticks > AL-04 single axis with 2° axes versions
ANALOGUE 25° VERSION
The 25° joystick version has these common features:
| MECHANICAL |
| Deflection angle | 25° (stepless) |
| Weight | 134 g |
| POTENTIOMETER TRACK |
| Total track resistance for axis | 5 kΩ ±20% |
| Linearity (wiper open circuit) | ± 2% |
| Electrical range | ± 23° (100% output) |
| Center tap position | 48-52% |
| Maximum voltage | 30 Vdc |
| Maximum wiper current | 3 mA |
| Recommended wiper load impedance | > 200 kΩ |
| SWITCH - DIRECTIONAL OR CENTER OFF / CENTER ON |
| Switch activation angle | ± 3,5° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |
Z-AXIS ANALOGUE 30°
The z-axis of the AL-04 analogue 30° joystick version has these common features:
| MECHANICAL |
| Detent angles: | 30° (stepless) |
| POTENTIOMETER TRACK |
| Total track resistance for axis | 5 kΩ ± 20% |
| Linearity (wiper open circuit) | ± 2% |
| Electrical range | ± 28° (100% output) |
| Center tap position | 48-52% |
| Maximum voltage | 30 Vdc |
| Maximum wiper current | 3 mA |
| Recommended wiper load impedance | > 200 kΩ |
| SWITCH - DIRECTIONAL OR CENTER OFF / CENTER ON |
| Switch activation angle | ± 4° |
| Maximum applicable voltage | 30 Vdc |
| Maximum output current | 3 mA |
| MECHANICAL |
| Detent angles with 2 steps: |
| Zero | 0° |
Step 1 | / |
| Step 2 | ± 14,4° |
| Step 3 | ± 21,6° |
| Detent angles with 3 steps: |
| Zero | 0° |
Step 1 | ± 7,2° |
| Step 2 | ± 14,4° |
| Step 3 | ± 21,6° |
| DIMENSIONS (mm) |
 |
| Note: the AL-04 single axis with 2° axes joystick, when used, needs an area that must be guaranteed for its correct actuation. This area is a 84,5 mm from neutral position of the joystick. |
The AL-04 single axis with 2° axes joystick family can be customized with the following options:
• friction (position hold)
• color knob or panel
Every cableless or cable control system can have each joystick configured in a different way in relationship of the requests with the machine and its application.
| FRICTION (POSITION HOLD) |
| There is the possibility to have the various versions of AL-04 joystick with friction (position hold) function. The weight change to 132 g. |
 |
| COLOR KNOB OR PANEL |
| The AL-04 model allows the customization of the panel on the top of the knob. Black panel is the standard, instead a different panel is available after a contact with MTEC staff. |
